E-bike car rack finder: compare limits before you load
Updated
Short answer
Heavy e-bike rack examples include the current 1UP USA Super Duty at 100 lb (45 kg) per bike and INNO Tire Hold HD at 80 lb (36 kg) per bike, 150 lb (68 kg) combined. INNO excludes RVs, trailers and towed vehicles. Check the exact configuration, each bike’s transport weight, combined load, receiver, vehicle allowance and wheel fit.
U.S.-market rack configurations and manufacturer load ratings.
How to choose a car rack for e-bikes
- Define the load: weigh each bike or trike in the configuration you will transport. Record any accessories left attached; do not subtract a battery you cannot remove as instructed.
- Check the vehicle first: identify the permitted carrier mounting point, receiver or crossbars, their limits and any extension restrictions. Include carrier mass, not just bicycle mass.
- Compare the exact rack configuration: check every tray or trike slot, the combined load, wheelbase, wheel size, tire width and permitted contact points. Add-ons can change ratings.
- Plan loading and clearance: check how you will lift or roll the load on, secure every wheel and frame contact as instructed, and keep required lights and plates visible. A ramp helps loading only when approved for that carrier.
For trikes, start with the dedicated carrier comparison.
Affiliate disclosure: As an Amazon Associate I earn from qualifying purchases. Amazon links below are paid links; buying through them may earn us a commission at no extra cost to you.
Shopping links refer to the U.S. configurations shown. If Amazon redirects you to a local store, confirm the model, hitch size and included parts before buying.
Find configurations to investigate
kg equivalents are rounded for display. Matching and load arithmetic use precise values; changing input units keeps the same transport weight.
Scroll inside the catalogue to browse racks.
The weight filter applies your heaviest-bike value to every slot, so it may exclude mixed-weight loads that would fit. Use the model notes for combined-load, RV and off-road limits.
Capacity at a glance
Configurations with the same per-bike road limit share a bar. Expand a group to see its models; filters above also update this comparison.
Configuration comparison table
| Brand / configuration | Mount / receiver | Bikes | Per bike | Combined | Rack mass | Conditions & source |
|---|---|---|---|---|---|---|
| Thule EasyFold XT 903202 | Hitch platform / 1.25 in (31.8 mm) / 2 in (50.8 mm) | 2 | 65 lb (29 kg) | 130 lb (59 kg) | 45 lb (20 kg) | US model;3 in (76.2 mm) tires,4.7 in (119.4 mm) with optional straps;51.2 in (1300 mm) wheelbase. Manufacturer source |
| Thule Epos with lights 903211 | Hitch platform / 1.25 in (31.8 mm) / 2 in (50.8 mm) | 2 | 75 lb (34 kg) | 140 lb (64 kg) | 40.8 lb (19 kg) | Two75 lb (34 kg) bikes exceed140 lb (64 kg) combined limit. Motorized RV needs40% reduction and exact instructions. Manufacturer source |
| Yakima StageTwo 2in · road | Hitch platform / 2 in (50.8 mm) | 2 | 70 lb (32 kg) | 140 lb (64 kg) | Unconfirmed | Off-road42 lb (19 kg) /bike; use exact manual for RV/adapter restrictions. Manufacturer source |
| Yakima StageTwo 1.25in · road | Hitch platform / 1.25 in (31.8 mm) | 2 | 60 lb (27 kg) | 120 lb (54 kg) | Unconfirmed | Off-road36 lb (16 kg) /bike;not RV approved. Manufacturer source |
| Yakima OnRamp LX 2in · road | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | 53.5 lb (24 kg) | Integrated ramp; off-road48 lb (22 kg) /bike. RV80 lb (36 kg) /bike subject to exact fit instructions. Manufacturer source |
| Küat Piston Pro X 2in · two trays | Hitch platform / 2 in (50.8 mm) | 2 | 67 lb (30 kg) | Unconfirmed | 64 lb (29 kg) | RV42 lb (19 kg) /tray; tire/wheel/fender combinations alter fit. Manufacturer source |
| Küat Piston Pro X 1.25in | Hitch platform / 1.25 in (31.8 mm) | 2 | 60 lb (27 kg) | Unconfirmed | 63 lb (29 kg) | Base two-bike configuration. Manufacturer source |
| Küat Piston Pro X 2in · three trays | Hitch platform / 2 in (50.8 mm) | 3 | 50 lb (23 kg) | Unconfirmed | 89 lb (40 kg) | Add-on lowers every tray rating. Manufacturer source |
| Küat Piston Pro X 2in · four trays | Hitch platform / 2 in (50.8 mm) | 4 | 40 lb (18 kg) | Unconfirmed | 113 lb (51 kg) | Add-on lowers every tray rating. Manufacturer source |
| Saris Edge 4086 | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | Unconfirmed | 2 in (50.8 mm) receiver; wheel-contact arms; ramp accessory. RV classes A/B/C claim requires exact installation rules. Manufacturer source |
| Hollywood Racks Sport Rider HR1500 | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | 58 lb (26 kg) | Frame hooks;5 in (127 mm) tires;36–60 in (91.4–152.4 cm) wheelbase. RV FAQs conflict: RV use held pending manual clarification. Manufacturer source |
| Swagman E-Spec Pro | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | Unconfirmed | Class3 receiver;5 in (127 mm) tires; towable RV70 lb (32 kg) /bike. Manufacturer source |
| 1UP USA Current Super Duty · double base | Hitch platform / 2 in (50.8 mm) / 2.5 in (63.5 mm) | 2 | 100 lb (45 kg) | Unconfirmed | Unconfirmed | Current generation only; older manuals75 lb (34 kg) . Add-on/tray position and use conditions require current manual. Manufacturer recommends wheel chock above75 lb (34 kg) . Manufacturer source |
| RIDE88 QR3 crossbar · two stations | Truck bed / Truck bed | 2 | 55 lb (25 kg) | Unconfirmed | Unconfirmed | Manufacturer labels this an estimated capacity; stability/vehicle conditions apply. Not treated as a certified weight-limit match. Manufacturer source |
| RockyMounts GigaWatt | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | 160 lb (73 kg) | Unconfirmed | REV_B manual:80 lb (36 kg) per bike/160 lb (73 kg) total;ClassIII/IV receiver. No off-road/trailers/towed vehicles/one-ton pickups/covers. RV limits require separate confirmation. Product 51 lb (23 kg) / 64 lb (29 kg) rack mass and34 in (86.4 cm) / 36 in (91.4 cm) wheelbase plus manual “34 in / 889 mm” (conflicting source pair) conflict remain held. Manufacturer manual |
| INNO Tire Hold HD INH123 | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | 150 lb (68 kg) | 53 lb (24 kg) | Official manual p2:80 lb (36 kg) per bike,150 lb (68 kg) combined;ClassIII/IV2 in (50.8 mm) receiver. No RV,trailers or towed vehicles;34–51 in (86.4–129.5 cm) wheelbase,20–29 in wheels,up to5 in (127 mm) tires. Manufacturer source |
| 1UP USA Super Duty roof tray | Roof / Crossbars | 1 | 100 lb (45 kg) | 100 lb (45 kg) | Unconfirmed | 2024 manufacturer introduction: up to100 lb (45 kg) for this roof tray. Vehicle roof and crossbar limits may be lower; lifting/clearance checks required. Manufacturer source |
| QuikrStuff Mach2 2in LV · 1 tray(s) · after May19,2026 | Hitch platform / 2 in (50.8 mm) | 1 | 75 lb (34 kg) | Unconfirmed | Unconfirmed | Current FAQ linked REV03 chart read visually. No adapters/extenders/swing arms/covers; vehicle/RV calculator still applies. Manufacturer source |
| QuikrStuff Mach2 2in LV · 2 tray(s) · after May19,2026 | Hitch platform / 2 in (50.8 mm) | 2 | 65 lb (29 kg) | Unconfirmed | Unconfirmed | Current FAQ linked REV03 chart read visually. No adapters/extenders/swing arms/covers; vehicle/RV calculator still applies. Manufacturer source |
| QuikrStuff Mach2 2in LV · 3 tray(s) · after May19,2026 | Hitch platform / 2 in (50.8 mm) | 3 | 55 lb (25 kg) | Unconfirmed | Unconfirmed | Current FAQ linked REV03 chart read visually. No adapters/extenders/swing arms/covers; vehicle/RV calculator still applies. Manufacturer source |
| QuikrStuff Mach2 2in LV · 4 tray(s) · after May19,2026 | Hitch platform / 2 in (50.8 mm) | 4 | 35 lb (16 kg) | Unconfirmed | Unconfirmed | Current FAQ linked REV03 chart read visually. No adapters/extenders/swing arms/covers; vehicle/RV calculator still applies. Manufacturer source |
| QuikrStuff Mach2 1.25in · current FAQ/chart identity conflict | Hitch platform / 1.25 in (31.8 mm) | 3 | Unconfirmed | Unconfirmed | Unconfirmed | FAQ says V3 afterMay19,2026; linked chart labels V2 steel base.70 lb (32 kg) / 60 lb (27 kg) / 35 lb (16 kg) chart not assigned until revision identity confirmed. Manufacturer source |
| Hollywood Racks HR1500 + TRK-E20 · one e-trike | Trike hitch / 2 in (50.8 mm) | 1 | 90 lb (41 kg) | 170 lb (77 kg) | Unconfirmed | One 90 lb (41 kg) e-trike plus optional 80 lb (36 kg) two-wheel bike, 170 lb (77 kg) combined; not two trikes. 60 in (152.4 cm) wheelbase / 36 in (91.4 cm) rear-tire-centre track. HR1500 base and Class III 2 in (50.8 mm) receiver only; no 1.25 in (31.8 mm) to 2 in (50.8 mm) adapter, RV, travel trailer, fifth wheel, towed vehicle, extender or cover. Manufacturer source |
| Hollywood Racks TA2 legacy trike adapter · discontinued | Trike hitch / Base-specific | 1 | Unconfirmed | Unconfirmed | Unconfirmed | Discontinued. Legacy base/model limits differ; not a current e-trike recommendation. Manufacturer source |
| Thule OutWay Platform 993005 | Trunk platform / Vehicle fit | 2 | 33 lb (15 kg) | 66 lb (30 kg) | 27.6 lb (13 kg) | Vehicle-specific fit;3 in (76.2 mm) tires/50 in (1270 mm) wheelbase. Weight rating is not blanket approval for an e-bike. Manufacturer source |
| Saris Solo | Trunk hanging / Vehicle fit | 1 | 35 lb (16 kg) | Unconfirmed | 2 lb (1 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Guardian2 | Trunk hanging / Vehicle fit | 2 | 35 lb (16 kg) | Unconfirmed | 7 lb (3 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Guardian3 | Trunk hanging / Vehicle fit | 3 | 35 lb (16 kg) | Unconfirmed | 8 lb (4 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Bones2 | Trunk hanging / Vehicle fit | 2 | 35 lb (16 kg) | Unconfirmed | 9 lb (4 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Bones3 | Trunk hanging / Vehicle fit | 3 | 35 lb (16 kg) | Unconfirmed | 11 lb (5 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Bones EX2 | Trunk hanging / Vehicle fit | 2 | 35 lb (16 kg) | Unconfirmed | 11 lb (5 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Saris Bones EX3 | Trunk hanging / Vehicle fit | 3 | 35 lb (16 kg) | Unconfirmed | 11 lb (5 kg) | Manufacturer comparison table35 lb (16 kg) /bike. Exact vehicle fit and bicycle restrictions must be checked; not assumed suitable for heavy e-bikes. Manufacturer source |
| Thule T2 Pro XTR9034XTR · 2in | Hitch platform / 2 in (50.8 mm) | 2 | 60 lb (27 kg) | 120 lb (54 kg) | 52 lb (24 kg) | 20–29 in wheels/5 in (127 mm) tires/50 in (1270 mm) wheelbase; motorized RV40% load reduction per instructions. Manufacturer source |
| Küat NV2.0 · 1.25in · 2trays | Hitch platform / 1.25 in (31.8 mm) | 2 | 60 lb (27 kg) | Unconfirmed | 55 lb (25 kg) | Add-on ratings decrease;not RV compatible. Manufacturer source |
| Küat NV2.0 · 2in · 2trays | Hitch platform / 2 in (50.8 mm) | 2 | 60 lb (27 kg) | Unconfirmed | 58 lb (26 kg) | Add-on ratings decrease;not RV compatible. Manufacturer source |
| Küat NV2.0 · 2in · 3trays | Hitch platform / 2 in (50.8 mm) | 3 | 50 lb (23 kg) | Unconfirmed | 78 lb (35 kg) | Add-on ratings decrease;not RV compatible. Manufacturer source |
| Küat NV2.0 · 2in · 4trays | Hitch platform / 2 in (50.8 mm) | 4 | 40 lb (18 kg) | Unconfirmed | 96 lb (44 kg) | Add-on ratings decrease;not RV compatible. Manufacturer source |
| Hollywood Racks Destination E HR4500 | Hitch platform / 2 in (50.8 mm) | 2 | 70 lb (32 kg) | 140 lb (64 kg) | 46 lb (21 kg) | Ramp included;4.5 in (114.3 mm) tires/50 in (127 cm) wheelbase. No front hitch/covers/1.25 in (31.8 mm) adapter/towed vehicles;ClassB RV only with exact conditions. Manufacturer source |
| Hollywood Racks RV Rider | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | 63.5 lb (29 kg) | ClassIII2 in (50.8 mm) only;36–60 in (91.4–152.4 cm) wheelbase/5 in (127 mm) tires. Exact motorhome/fifth-wheel/flat-towed setup conditions apply. Manufacturer source |
| Swagman Escapee Pro · base two-bike | Hitch platform / 2 in (50.8 mm) | 2 | 80 lb (36 kg) | Unconfirmed | Unconfirmed | ClassIII2 in (50.8 mm); no front fenders. Towable RV70 lb (32 kg) /bike;4bike add-on NOT RV approved. Manufacturer source |
| Swagman Current Pro | Hitch platform / 1.25 in (31.8 mm) / 2 in (50.8 mm) | 2 | 60 lb (27 kg) | Unconfirmed | Unconfirmed | ClassII1.25 in (31.8 mm) or ClassIII2 in (50.8 mm). Check exact wheel/frame and vehicle fit. Manufacturer source |
Why two tray ratings do not always add up
Thule Epos example: combined limit 140 lb (64 kg)
Two 75 lb (34 kg) bikes = 150 lb (68 kg): 10 lb (5 kg) over the combined limit
Three limits, one load
1 · Each bike
Every bike must stay within its tray rating. A spare tray does not increase another tray's limit.
2 · All bikes
Check the combined limit separately. Metric equivalents are rounded independently; arithmetic uses the original lb values. Epos example: 75 lb (34 kg) + 75 lb (34 kg) = 150 lb (68 kg), exceeding its 140 lb (64 kg) combined limit.
3 · Vehicle & mount
Account for the rack, bikes and accessories. Vehicle, hitch, roof and adapter instructions may impose a lower limit or prohibit the installation.

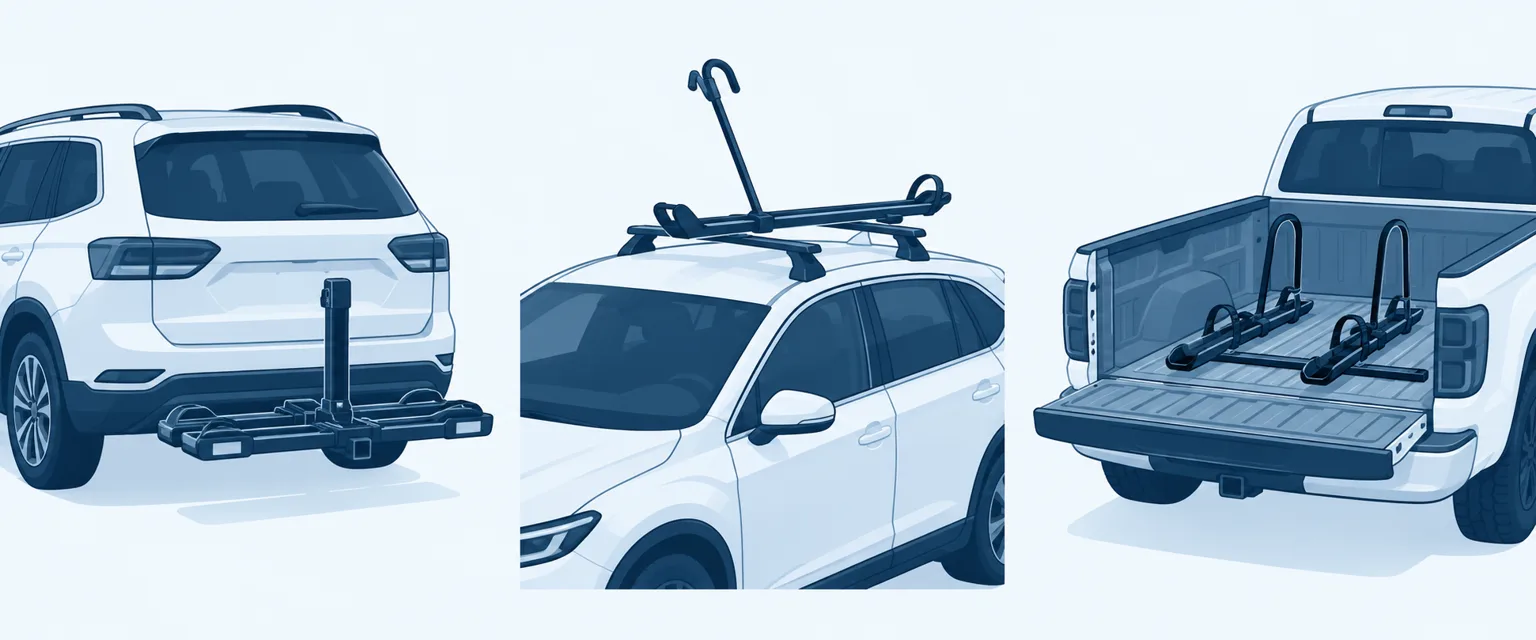

Choose the mounting approach
- Hitch platforms: lower loading height and e-bike options, but receiver rating/clearance and frame or tire contact still matter.
- Roof trays: the tray rating does not override roof/crossbar limits; consider lifting height and overhead clearance.
- Truck-bed systems: mounting structure, wheel restraint and bed/payload instructions govern the setup.
- Trunk/hanging racks: do not infer e-bike suitability from bike count. Require an explicit rating for each bike and vehicle fit.
Hitch receivers: size, class and load
The receiver is the square opening that accepts the rack’s shank. Measure its inside width; the hitch label gives its class and rating.
| Class | Receiver opening | Trailer tongue-weight rating |
|---|---|---|
| I | 1.25 in (31.8 mm) | Up to 200 lb (91 kg) |
| II | 1.25 in (31.8 mm) | Up to 350 lb (159 kg) |
| III | 2 in (50.8 mm) | Up to 800 lb (363 kg) |
| IV | 2 in (50.8 mm) | Up to 1000 lb (454 kg) |
| V · Xtra Duty | 2 in (50.8 mm) | 2400–2550 lb (1089–1157 kg) |
| V · Commercial Duty | 2.5 in (63.5 mm) | Up to 2700 lb (1225 kg) |
These CURT class-guide figures describe trailer tongue loads; individual hitches and vehicles can be rated lower. For a bike rack, add the rack + bikes + carried accessories, then check that total against the vehicle/hitch carrier allowance and the rack’s own limits. Thule’s carrier guide includes the rack itself in the tongue-weight check.
Example: a 50 lb (23 kg) rack and two 65 lb (29 kg) e-bikes put 180 lb (82 kg) on the carrier setup before accessories. A 2 in (50.8 mm) opening tells you which shank fits; the vehicle, hitch and rack instructions establish whether that load is permitted.
Electric trike carriers: compare the configuration
Trike carriers support a different wheel layout from ordinary bike trays. Compare the HR1500 + TRK-E20 setup with legacy equipment and specialist options below.
| Carrier or lead | What is established | What still needs checking |
|---|---|---|
| Hollywood HR1500 + TRK-E20 | One e-trike up to 90 lb (41 kg); optional two-wheel bike up to 80 lb (36 kg); 170 lb (77 kg) combined. Maximum 60 in (152.4 cm) wheelbase and 36 in (91.4 cm) rear-tire centre track. | HR1500 base required. A 2 in (50.8 mm) Class III receiver only; no 1.25 in (31.8 mm) to 2 in (50.8 mm) adapter, RV, travel trailer, fifth wheel, towed vehicle, hitch extender or bike cover. Confirm tire/holder fit and full assembly mass. Not two trikes. |
| Hollywood TA2 | Discontinued adapter with base-specific historical limits. | Not interchangeable with TRK-E20. Keep the exact legacy base instructions; excluded from numeric weight matching. |
| Alpaca 1500 tadpole carriers | The manufacturer lists dedicated one- and two-trike variants. | The linked capacity guide could not be retrieved. Exact e-trike load and fit remain unverified; not included in finder weight matches. |
| SeaSucker Trike Rack | A manufacturer-listed roof-mounted trike system. | No verified e-trike cargo limit for this comparison. Vacuum-mount pull strength is not a carried-load rating. Confirm roof/surface and exact trike fit; excluded from numeric matching. |
Measure the trike, not just its weight
The TRK-E20 manual linked by Hollywood Racks defines wheelbase between the front and rear hub centres and rear track between tire centres, not outside edges. It calls for its small-wheel adapters below 20 in wheel diameter; at 20 in diameter and under 2 in (50.8 mm) tire width, it recommends them. Follow the full manual, including its tie-downs and loading sequence. The linked manual does not specify a loading ramp or a maximum trike tire width; do not transfer the HR1500’s ordinary-bike tray dimensions to the adapter.
- Load: write the measured trike transport weight and any companion bike’s weight separately.
- Geometry: record wheel layout, wheelbase, track measured by the carrier’s method, wheel diameter, tire width and fenders.
- Complete assembly: obtain the base-plus-adapter mass. The combined bicycle allowance is not the rack’s mass or the vehicle’s available carrier load.
- Loading: confirm how you will lift and secure the trike. Use only loading equipment and attachment points approved for that configuration.
- Vehicle: confirm receiver class/size, clearance, permitted rear load and any use restrictions in both vehicle and rack instructions.
Selecting Trike hitch starts the finder at one trike. The count refers to trike slots; an optional companion bike has a separate allowance.
Fit checks weight filters cannot answer
Measure wheelbase, tire width and wheel diameter, and check the rack’s contact points against fenders, frame material and frame shape. Remove a battery only when the bike and rack instructions permit; weigh the transport configuration. Keep lights and plates visible, and follow the model’s rules for covers, adapters and extensions.
About the illustrations
Catalogue sketches are AI-assisted illustrations based on manufacturer photographs, shown from a new viewpoint. Small hardware details are stylized; use the linked photographs and manuals for attachment details. The mounting overview shows concepts, and the trike artwork distinguishes the dark adapter from its pale supporting rack.
34 of 41 configurations have reviewed illustrations. Remaining entries stay text-only while their exact photo or artwork is verified.
Manufacturer photograph sources
- Thule EasyFold XT 903202
- Thule Epos with lights 903211
- Yakima StageTwo 2in · road
- Yakima StageTwo 1.25in · road
- Yakima OnRamp LX 2in · road
- Küat Piston Pro X 2in · two trays
- Küat Piston Pro X 1.25in
- Saris Edge 4086
- Hollywood Racks Sport Rider HR1500
- Swagman E-Spec Pro
- 1UP USA Current Super Duty · double base
- RIDE88 QR3 crossbar · two stations
- RockyMounts GigaWatt
- INNO Tire Hold HD INH123
- 1UP USA Super Duty roof tray
- QuikrStuff Mach2 2in LV · 1 tray(s) · after May19,2026
- Hollywood Racks HR1500 + TRK-E20 · one e-trike
- Hollywood Racks TA2 legacy trike adapter · discontinued
- Thule OutWay Platform 993005
- Saris Solo
- Saris Guardian2
- Saris Guardian3
- Saris Bones2
- Saris Bones3
- Saris Bones EX2
- Saris Bones EX3
- Thule T2 Pro XTR9034XTR · 2in
- Küat NV2.0 · 1.25in · 2trays
- Küat NV2.0 · 2in · 2trays
- Küat NV2.0 · 2in · 4trays
- Hollywood Racks Destination E HR4500
- Hollywood Racks RV Rider
- Swagman Escapee Pro · base two-bike
- Swagman Current Pro
Research coverage & conflicts
41 configurations with linked manufacturer evidence. Individual observation dates are retained in the source data. Specialist trike leads stay outside weight matching until their load limits are established. Brand coverage: Thule, Yakima, Küat, Saris, Hollywood Racks, Swagman, 1UP USA, RockyMounts, INNO, QuikrStuff and RIDE88. Each row represents a configuration. Pending rows stay outside numeric weight matching. GigaWatt rack mass/wheelbase and Sport Rider RV guidance conflict within manufacturer pages; those fields/uses remain held. INNO manual now confirms80 lb (36 kg) per bike and150 lb (68 kg) combined. Current2in Mach2 LV REV03 chart now verified;1.25in FAQ/chart revision labels conflict and remain held. Additional models are added as their specifications are verified.
