Rad Power Bikes RadWagon 5
Updated
Regular frame, Metallic Blue, 15Ah 720Wh Safe Shield Advanced External battery; U.S. offering.
At a glance
- $2,399 USD — manufacturer advertised bicycle price.
- 720 Wh — manufacturer battery-capacity claim.
- In stock — observed availability for the selected offer.
Specifications and useful limits
| Specification | Value and scope | Evidence |
|---|---|---|
| Rated motor power | 750 W Manufacturer-rated power; maker says actual power to ground is under 750 W. | Manufacturer claim [1] |
| Torque | 66.4 lb-ft (90 N·m) | Manufacturer claim [1] |
| Battery capacity | 720 Wh Marketed maximum capacity (15Ah); manual sample label distinguishes rated 47.19V/14.4Ah from maximum 48V/15Ah. Not a measured usable-energy claim. | Manufacturer claim [1] |
| Up-to range claim | 60 mi (97 km) | Calculated from cited claims [1] |
| Maximum assisted speed | 28 mph (45.1 km/h) Class 3 pedal-assist maximum; ships in Class 2. Throttle maximum remains 20 mph. | Calculated from cited claims [1] |
| Rider and cargo limit | 375 lb (170 kg) maximum rider separately 265 lb. | Calculated from cited claims [1] |
| Bike weight | 86 lb (39 kg) Manufacturer metric geometry weight, with battery; Base bike. | Manufacturer claim [1] |
| Recommended minimum rider height | 4 ft 11.1 in (150 cm) | Manufacturer claim [1] |
| Recommended maximum rider height | 6 ft 2.8 in (190 cm) | Manufacturer claim [1] |
| Nominal wheel size | 20 in | Manufacturer claim [1] |
Not established in this record: Measured range for this exact configuration.
Price and availability
$2,399 USD is the advertised bicycle price for this selected offer. The selected manufacturer offer was available when checked. [1]
Configuration details that matter
- The maker advertises a maximum 720 Wh capacity. The manual’s sample battery label distinguishes rated 47.19 V/14.4 Ah from maximum 48 V/15 Ah; these are specification figures, not measured usable energy.
- The current maker specifies 86 lb with the battery. Electric Bike Report weighed its review sample at 85.7 lb.
- Maximum rider weight is 265 lb. The 375 lb total payload includes the rider, cargo and accessories; the rear rack limit is 120 lb. Keep every load within both the total and individual limits.
Recall and service checks
CPSC’s battery warning names RP-1304, RAD-S1304Y and HL-RP-S1304 packs. The notice includes Rad’s statement excluding Safe Shield batteries from that warning; the selected offering is listed with a 15 Ah Safe Shield pack. Check the actual battery label, especially if a pack has been replaced.
[4] Check the individual bicycle and battery identifiers against the current notice and dealer records before purchase.
Independent reading
- Electric Bike Report: Rad Power Bikes RadWagon 5 Review (2025-01-02) — Hands-on review reports tested weight 85.7 lb versus maker 86 lb. Current maker base-bike weight is retained; the measured review sample is separately attributed. Editorial independence: unknown.
Sources and method
Manufacturer claims and converted values are identified in the table. This is a specification record; our research policy explains the verification method.
Compare published bikes · Check height and inseam · Check transport limits

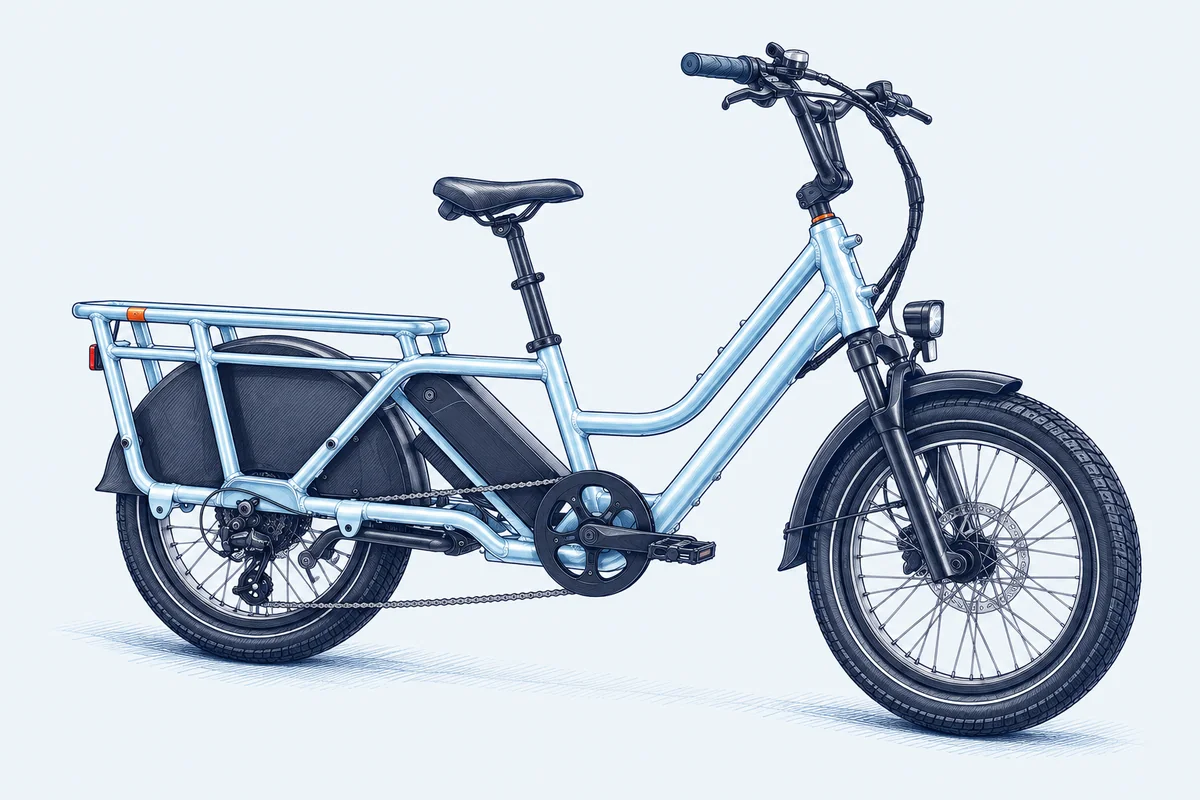

About this illustration
